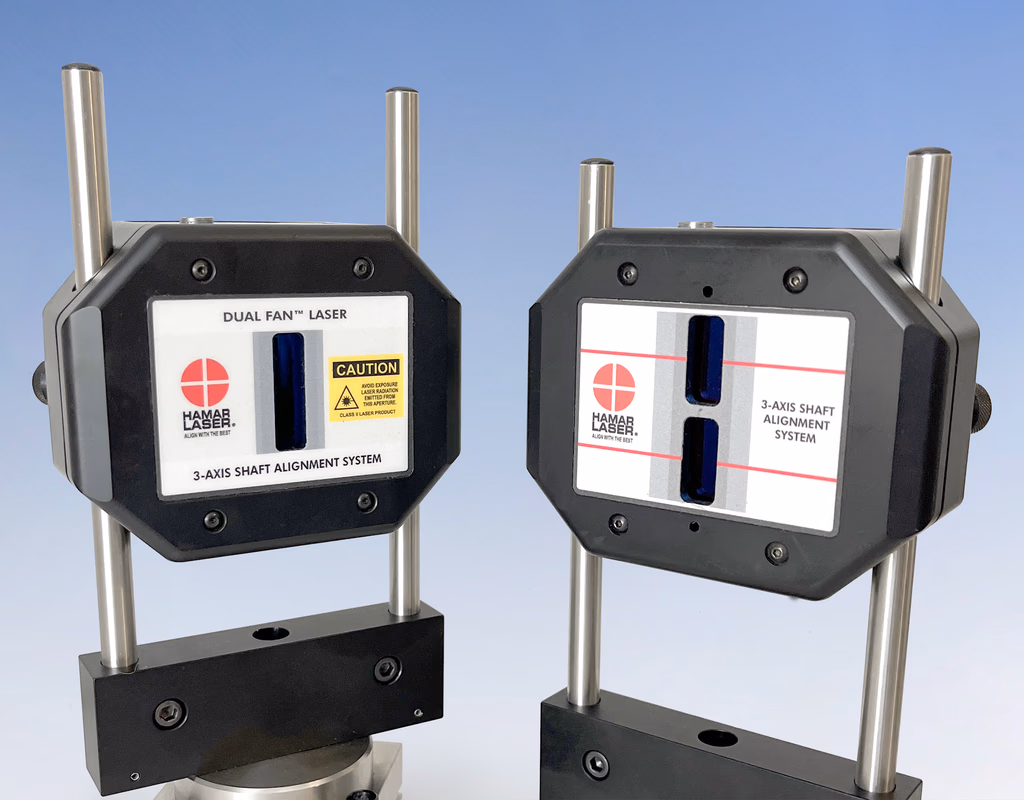

X-Series™ Laser Shaft Alignment Systems for the Metals Industry

Precision Alignment for Harsh, High-Load Industrial Environments

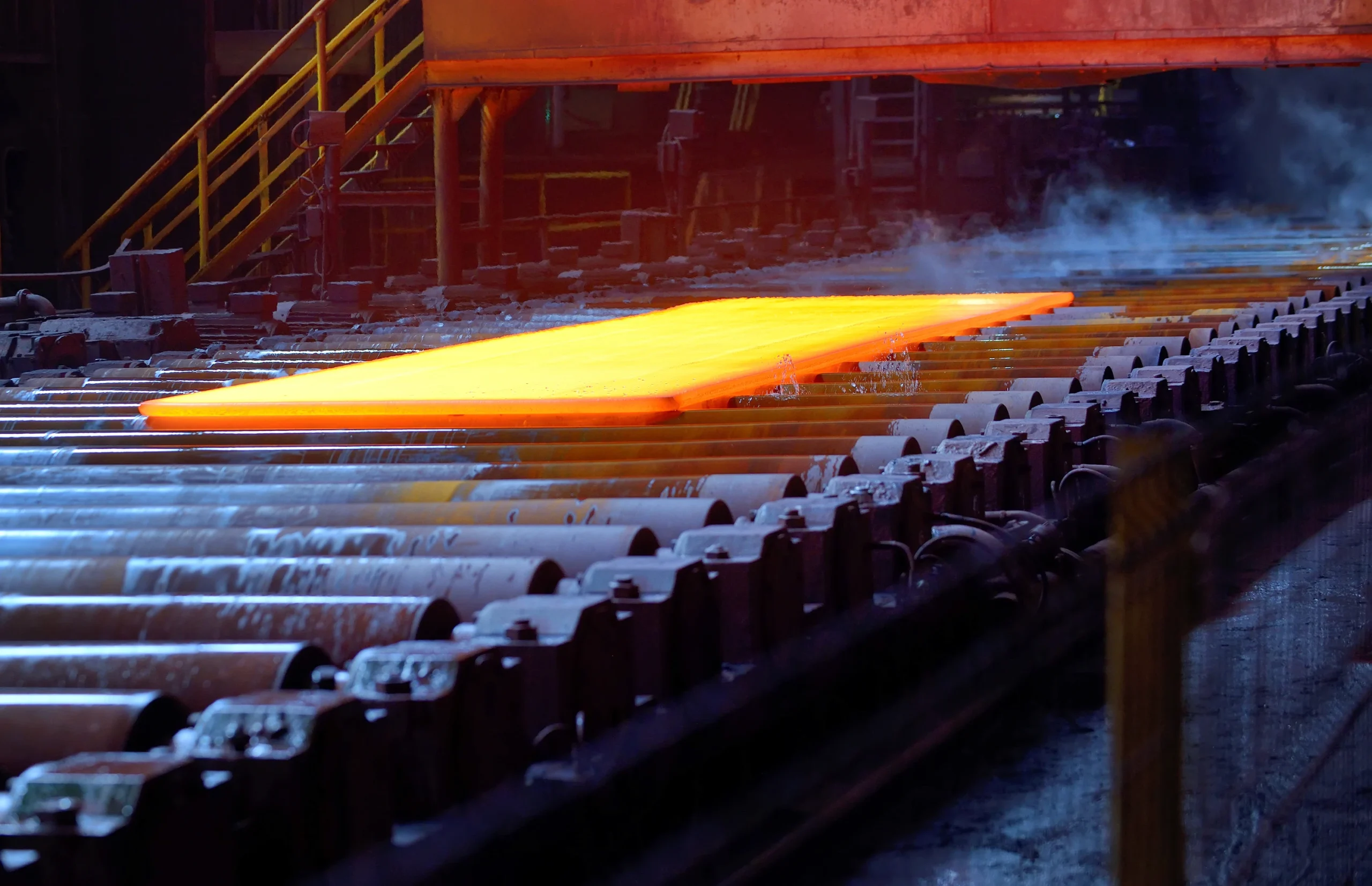

In the metals industry, equipment runs under extreme conditions, high temperatures, heavy loads, continuous production, all of which demand impeccable shaft alignment. Whether you’re rolling steel, extruding aluminum, or forging iron components, misaligned shafts in motors, gearboxes, and rollers can cause increased vibration, excessive bearing and seal wear, and costly unplanned downtime.

Hamar Laser’s X-Series™ Laser Shaft Alignment Systems are engineered to perform in these harsh environments, delivering unmatched accuracy, speed, and repeatability. Backed by over 50 years of innovation and field experience, our alignment tools help metals producers maximize uptime, minimize equipment failure, and maintain safety and quality.

Common Applications in the Metals Industry

Rolling mill drives and motors
Extruders, crushers, and conveyors
Gearboxes and spindles
Induction furnaces and cooling systems
Forging press pumps and hydraulic systems
Air compressors, fans, and blowers

Why X-Series™ Is Ideal for Metals Processing

Sub-Micron Precision – Detects misalignment as small as 0.0001″ even in rugged environments
Live Move Feedback – Aligns shafts in real time without repeated measurements
Wireless, IP67-Rated Heads – Built to withstand dust, heat, moisture, and vibration
Quick Setup – Reduces alignment time by up to 70%, saving hours on critical repairs
Easy-Guide™ Software – Simplifies alignment steps for both experienced and novice users
Full Reporting – Automatically generates detailed alignment documentation

Industry-Specific Benefits

Minimizes Downtime – Align faster and return machines to production quicker
Extends Equipment Life – Prevents misalignment-related failures of motors, couplings, and bearings
Reduces Energy Waste – Lowers friction and power draw caused by poor shaft alignment
Improves Worker Safety – Prevents dangerous mechanical failures in high-power systems
Streamlines Maintenance – Easy-to-use system that reduces need for external alignment contractors

CASE STUDY

Steel Mill Avoids Costly Roll Stand Shutdowns

Challenge: A U.S.-based steel manufacturer was experiencing frequent failures in roll stand motors and gearboxes due to shaft misalignment. These failures led to multiple production shutdowns and significant overtime costs.

Solution: The facility adopted the X-660 3-Axis Laser Shaft Alignment System to align main drive shafts and support equipment.

Alignment time was reduced by

time by

60%

Bearing failures dropped by

50%

Annual maintenance costs cut by

over $80,000

Improved first-pass yield

and production output

Improved uptime and product consistency on the production line

Built for Heavy Industry Performance

The metals industry pushes machinery to its limits. That’s why X-Series™ was built for rugged reliability, providing precision alignment that helps you get the most out of every asset, whether you’re hot rolling steel or extruding aluminum profiles.

Why Choose X-Series™ for Metals Production

Designed for high-load, high-vibration environments
Easy-to-use tools reduce operator training time
Wireless tech simplifies alignment on large-scale equipment
Patented Dual-Beam™ Technology ensures industry-leading accuracy
Built-in reporting supports ISO 9001 and maintenance audits

The Bottom Line

In the metals industry, where equipment failure leads to major losses in productivity and safety, precision shaft alignment is non-negotiable. X-Series™ delivers the reliability, ruggedness, and accuracy your operation demands, helping you stay ahead of costly failures and production delays.
