Laser Shaft Alignment
Hamar Laser’s X-Series™ includes a full range of shaft alignment systems designed to fit different budgets, machine types, and alignment needs. From entry-level 3-axis systems to advanced wireless 5-axis systems, each model delivers fast, accurate results and easy setup. All systems are compatible with our intuitive Couple6™ shaft alignment software and a wide selection of accessories.
For added flexibility, our Build Your Own™ (BYO) program lets you configure a custom system with only the features you need.
We also support all legacy shaft alignment systems, including the original Stealth Series™ S-660, so you can count on long-term reliability and upgrade options no matter which model you own.

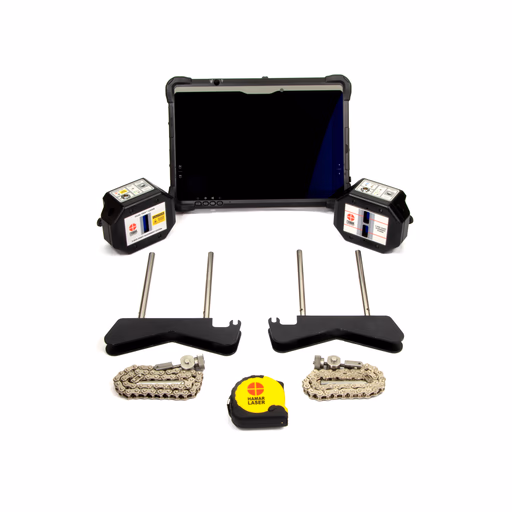

The X-660 delivers precise, efficient shaft alignment for a wide range of industrial applications. Built for demanding environments, it combines advanced laser technology with easy-to-use Couple6 software to reduce downtime, extend equipment life, and ensure reliable performance.
Read more

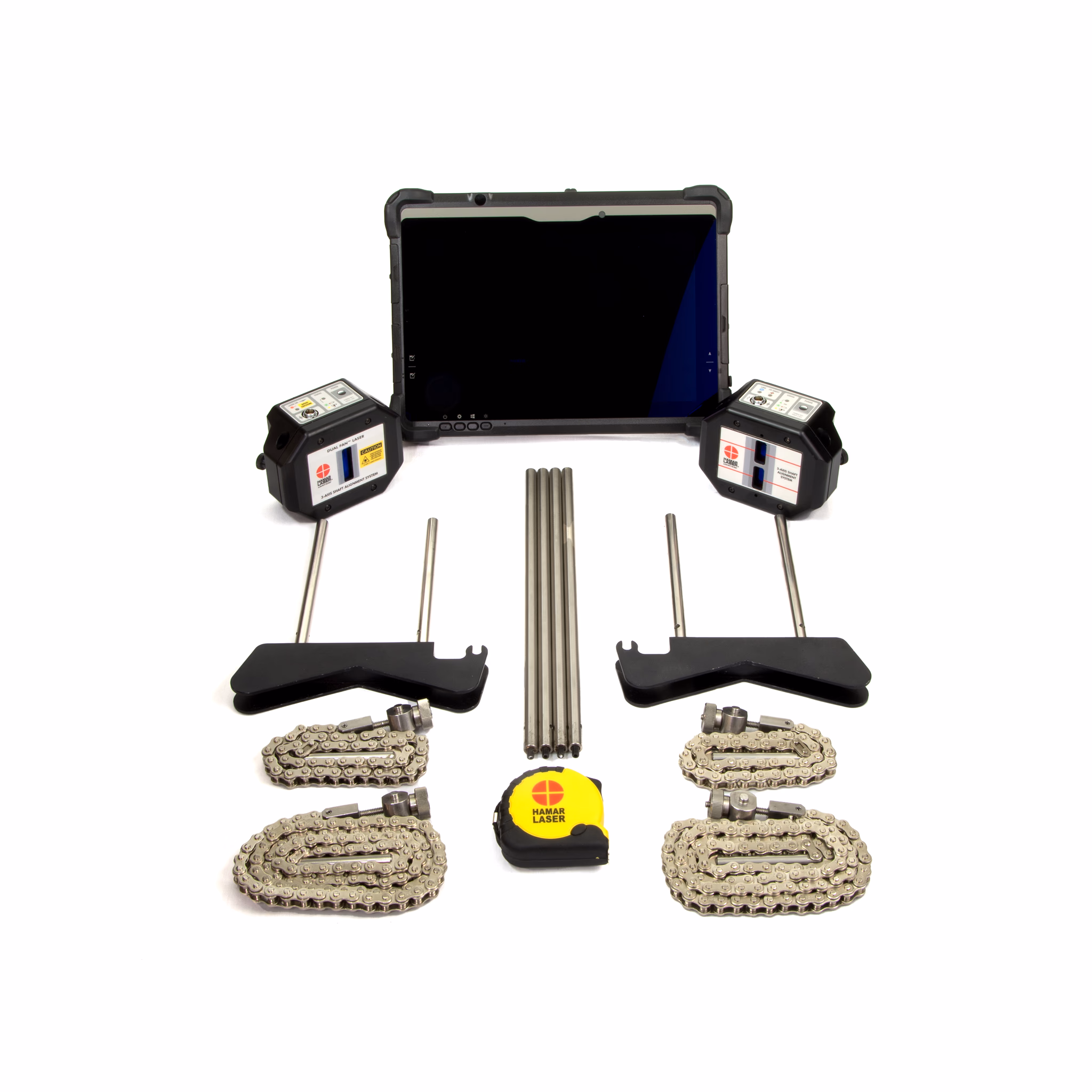

The X-770 PRO offers advanced shaft alignment for both simple and complex applications, using every application in the Professional License. Its rugged design and intuitive interface deliver top-tier accuracy while reducing downtime and extending equipment life in demanding industrial environments.
Read more

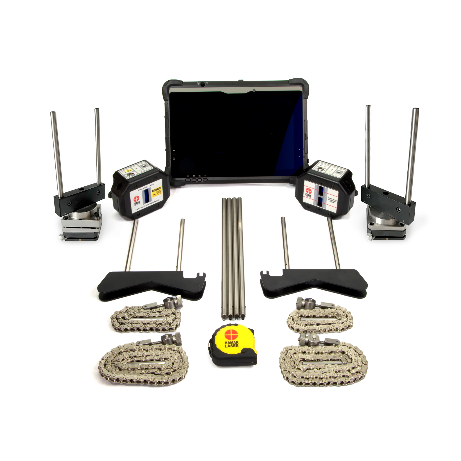

The X-770 PRO + GEO delivers advanced shaft alignment along with expanded geometric measurement capability, allowing technicians to perform both alignment and condition evaluation using the same system. Its rugged design and intuitive interface provide accurate, repeatable results while reducing setup time, minimizing downtime, and supporting longer equipment life in demanding industrial environments.
Read more

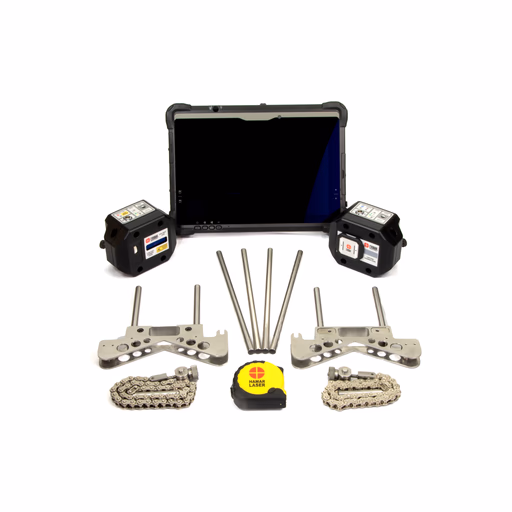

The X-880 delivers unmatched precision and repeatability with advanced 5-axis measurement capabilities. Designed for demanding industrial environments, it’s ideal for multi-coupling applications and heavy-duty machinery, helping reduce maintenance costs, maximize uptime, and ensure optimal machine performance.
Read more

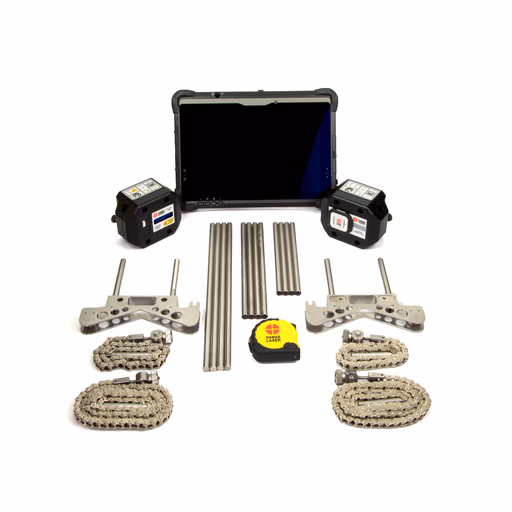

The X-990 PRO delivers industry-leading precision and durability for the most demanding industrial environments. With advanced 5-axis capabilities and intuitive operation, it ensures accurate, repeatable results , maximizing uptime and reducing maintenance costs.
Read more

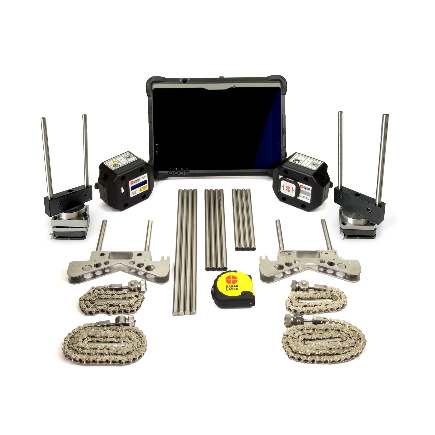

The X-990 PRO + GEO combines high-precision 5-axis shaft alignment with scalable geometric measurement capability, creating a complete solution for complex industrial applications. Designed for the most demanding environments, it delivers fast, repeatable results with an intuitive workflow that improves accuracy, maximizes uptime, and reduces overall maintenance costs.
Read more
Boost your X-Series™ or Stealth Series™ system with rugged, precision-built accessories for tough setups and tight spaces. All accessories work seamlessly across both generations, protecting your investment and simplifying upgrades.
Read more

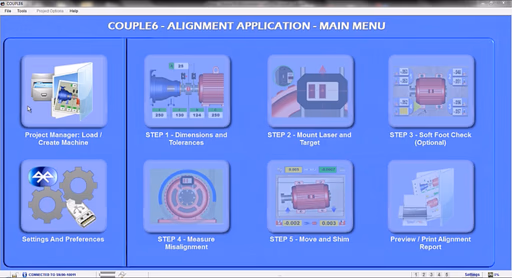

Couple6™ powers the X-Series™ with intuitive, step-by-step navigation, smart visuals, and real-time feedback for precise shaft alignment. From basic jobs to advanced modes, it delivers speed, accuracy, and flexibility for any alignment task.
Read more
Introduced in 2007, the Stealth Series™ redefined laser shaft alignment with rugged Dual-Beam™ technology, high precision, and scalable performance. From the flagship 5-axis S-680 to the versatile S-670 hybrid and compact S-660, these systems offered options for every alignment need, paving the way for today’s advanced X-Series™.
Read more
Couple5 was introduced alongside the Stealth Series™, bringing intuitive, Windows®-based laser alignment with smart visuals and real-time feedback. Shortly after, it was followed by the release of Couple6, which further advanced the platform with expanded functionality and improved workflow. All Stealth Series systems can be immediately upgraded to the latest version of Couple6, ensuring users have access to the most current features and capabilities.
Read more
Assumptions for this example: You have a 480 volt motor drawing 40 amps and operating 8400 hours/year. The Power Factor is .85. Electricity costs $0.06/kWhr. Also assume that the amp draw is measured before and after the alignment and it is found that there is a 1 amp difference.
kW =V* A*PF*1.732/1000
kW =480V* 1A*.85*1.732/1000
kW =.706 = power savings
Savings ($) = operating hours * kW savings * kW cost
Savings ($) = 8400 * .706 * $0.06/kWhr
Savings ($) = 8400 * .706 * $0.06/kWhr
Savings ($) = 355.82
If your plant has 80 similar motors, and if only half of them had the same amount of savings, it would total $355.82 * .5 = $14,232!

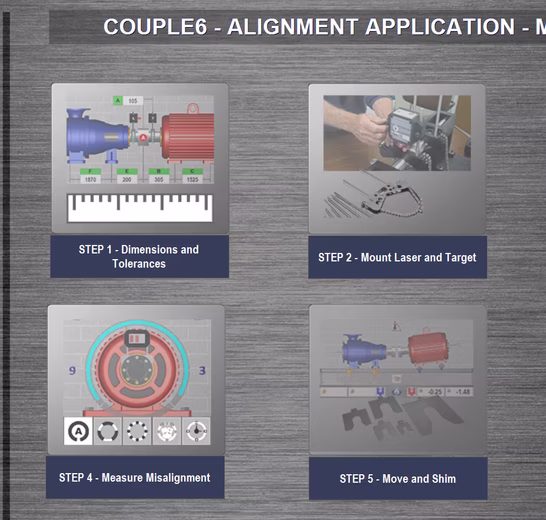

The coupling icons next to the data displays show the direction of the misalignment at the coupling and update as you move or shim the motor! You can also zoom in on the coupling to show them in the live display area of the screen.
