X-Series™ Laser Shaft Alignment Systems for Pharmaceutical & Chemical Production

Precision You Can Trust in Environments That Demand Perfection

In pharmaceutical and chemical manufacturing, precision isn’t optional, it’s essential. From GMP compliance to 24/7 process reliability, every detail matters. Equipment misalignment can disrupt batch consistency, compromise product quality, drive up energy use, and lead to unplanned shutdowns.

That’s why leading pharma and chemical plants rely on the unmatched accuracy and repeatability of Hamar Laser’s X-Series™ Laser Shaft Alignment Systems.

Made for Mission-Critical Production Environments

In tightly regulated production environments where contamination control, uptime, and traceability are top priorities, X-Series™ offers a high-performance solution designed for reliability and cleanroom adaptability:

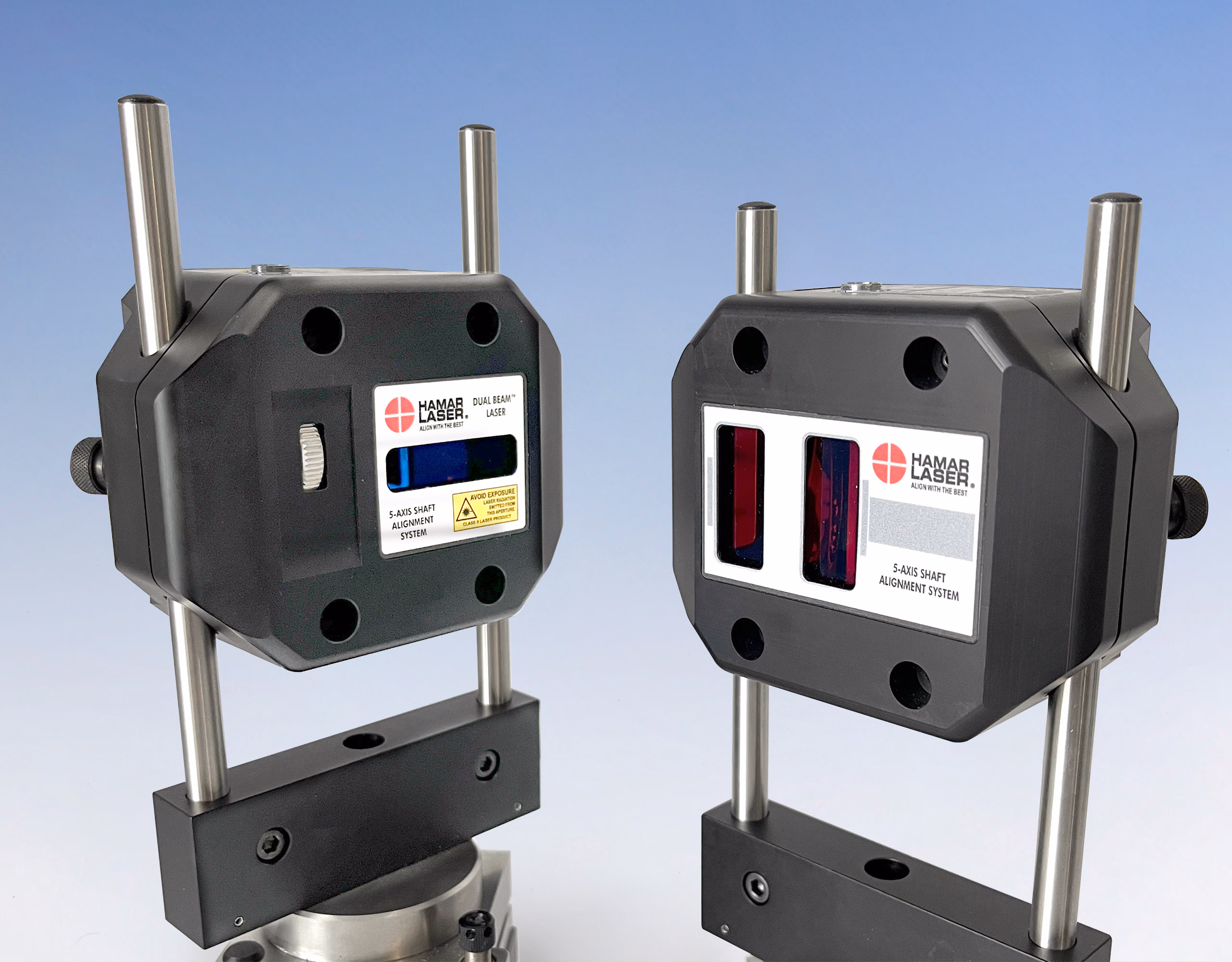

Wireless, sealed alignment heads rated IP67, ideal for clean, controlled environments
Sub-micron accuracy for small motor and pump systems
Live Move Mode for real-time correction of misalignment
Rugged yet cleanable tablet interface, gloved operation compatible
Digital alignment reports that meet validation and audit requirements

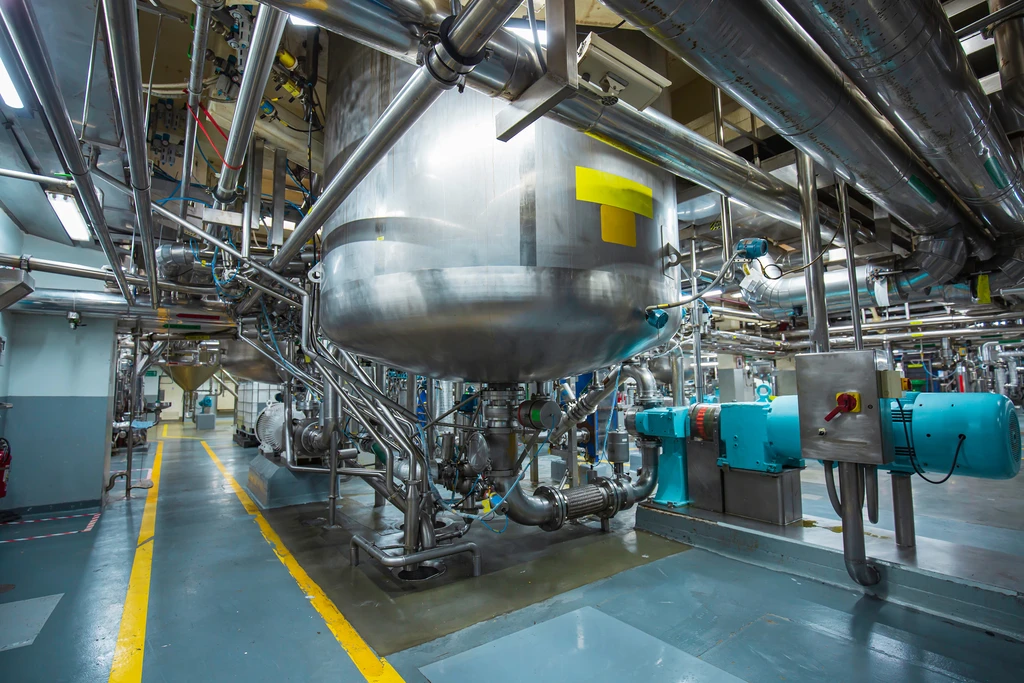

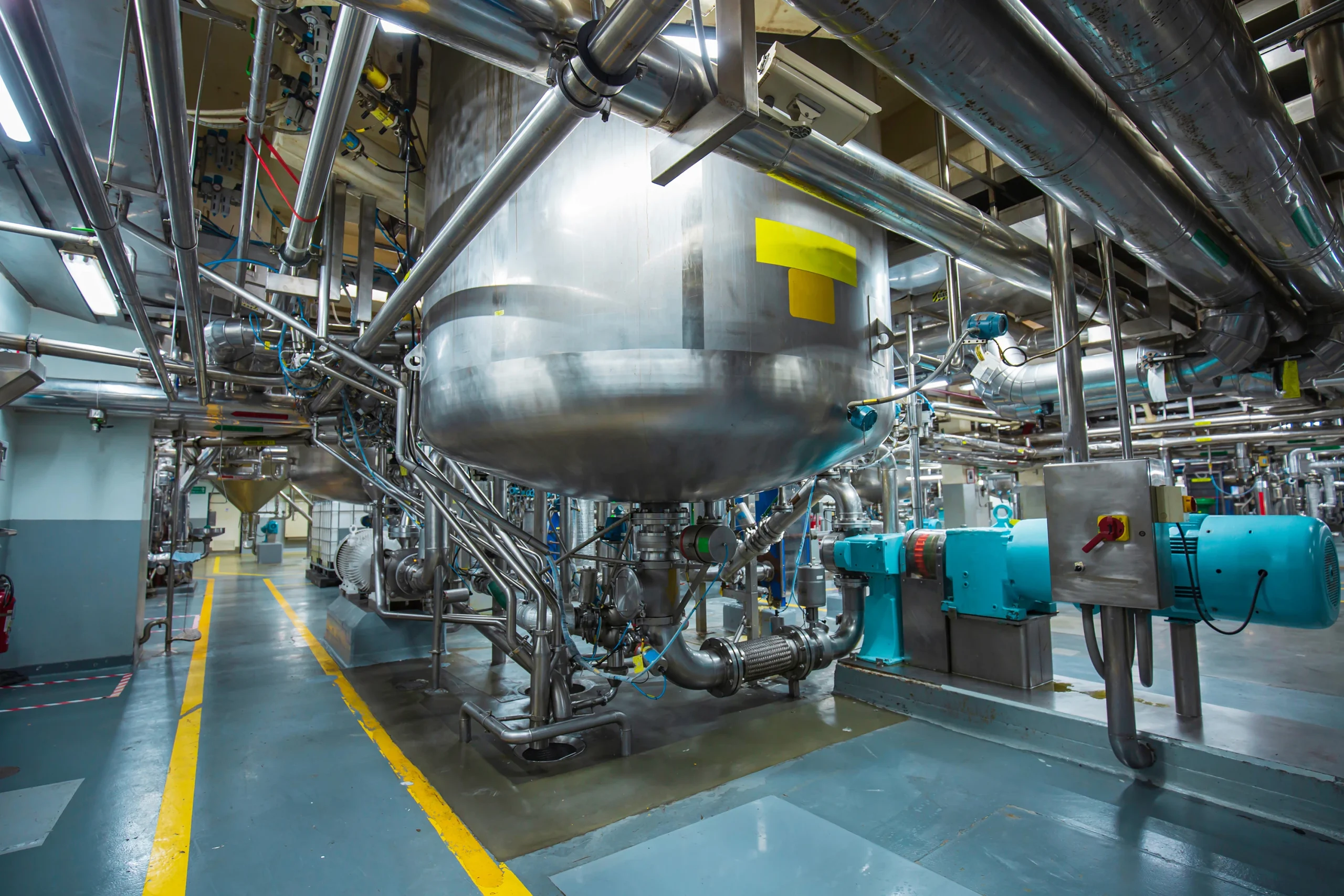

Whether you’re running a batch reactor, centrifugal pump, or HVAC chiller, X-Series™ helps ensure machinery is aligned to exacting standards, with minimal disruption.

Applications Across Pharma & Chemical Facilities

Centrifugal and diaphragm pumps
Mixers, agitators, and blenders
HVAC motors and cleanroom air handlers
Filling and packaging machinery
Rotary valves and compressors
Skid-mounted process systems

Key Benefits for Pharma & Chemical Manufacturers

Improve equipment uptime and process flow
Reduce contamination risks by eliminating vibration-causing misalignment
Lower energy usage by minimizing mechanical drag
Ensure FDA, GMP, and ISO compliance with documented alignment reports
Enhance product quality by stabilizing process variables
Optimize maintenance resources with faster, more accurate alignments

Next-Level Technology That Simplifies Precision Alignment

Patented Unidirectional Dual-Beam™ Technology – up to 15x more accurate than competitors
Real-time shim & move guidance – no guesswork or recalculation
Automatic data collection – hundreds of data points in seconds
Easy-Guide™ software navigation – empowers technicians with all skill levels
No bracket sag or dial error – superior accuracy over manual methods

CASE STUDY

Pharmaceutical Manufacturer Cuts Downtime & Validates ROI

Problem: A leading pharmaceutical company faced recurring misalignment issues in their fluid transfer system, leading to frequent pump failures, increased vibration, and failed batch QA due to inconsistent mixing temperatures.

Solution: The maintenance team deployed the X-880 X-Series™ 5-Axis Laser Shaft Alignment System to inspect and correct all motor-pump assemblies during a planned shutdown.

Reduced alignment time by

over 65%

Decreased vibration by

45%

stabilizing critical fluid temperatures

Generated digital, time-stamped alignment records for
FDA validation audits

Improved pump MTBF by

over 300%

ROI achieved in just

4 months

with ongoing gains in process reliability

Precision Alignment with Zero Compromise

In an industry where quality, traceability, and performance are non-negotiable, X-Series™ delivers alignment solutions that support your most demanding goals, whether that’s reducing energy costs, extending asset life, or maintaining FDA compliance.

Why X-Series™ Is the Smart Choice for Pharma & Chemical Facilities:

Cleanroom-ready technology with wireless, sealed components
Fast, digital alignment for pumps, fans, and mixers
Precision and traceability for compliance-driven operations
Unmatched ease of use and training efficiency
Proven ROI through reduced downtime and energy savings

The Bottom Line

Clean, controlled environments require precision equipment to meet strict regulatory standards. X-Series™ delivers the accuracy needed to maintain process reliability, reduce vibration-induced failures, and support GMP compliance with digital alignment records.
