At Hamar Laser, shaft alignment isn’t just part of what we do, it’s our specialty. With over 55 years of laser alignment innovation, we’ve engineered X-Series™ Laser Shaft Alignment Systems to set the standard for precision, repeatability, and ease of use.
Whether you’re dealing with simple motor-pump sets or complex, multi-coupling machine trains, X-Series™ delivers professional-grade performance trusted by alignment experts around the world.
We are the Alignment Experts
Precision Laser Alignment is our core focus, not an add-on. That expertise shows in every feature of our X-Series™ systems, purpose-built for demanding field applications.
Superior Accuracy, Backed by Innovation
Our Patented Dual-Fan™ and Dual-Beam™ laser and super-linear PSD technology give X-Series™ up to 10 times the accuracy of typical systems, eliminating guesswork and unnecessary rough-in steps.
Designed for the Real World
From tight machine footprints and coupled shafts to outdoor conditions and high-vibration environments, X-Series™ is built to perform wherever you need it.
Smarter Alignment Workflow
With our powerful Couple6™ Alignment Software, users get guided workflows, real-time visual feedback, Duo-Plane™ live move screens, and one-button PDF reports.
One Platform, Complete Compatibility
Every accessory works across our X-Series™ and legacy Stealth Series™ systems, ensuring long-term value, easy upgrades, and seamless transitions.
Repeatability That Builds Trust
Reliable data you can validate and repeat under real-world conditions, because true alignment accuracy isn’t just about numbers; it’s about confidence.
At Hamar Laser, we don’t just sell alignment tools, we design and build the systems alignment specialists trust to do their jobs right the first time. X-Series™ is the result of decades of innovation, field testing, and industry leadership, engineered by specialists, for specialists.
If precision alignment is your priority, then X-Series™ is your solution.
Assumptions for this example: You have a 480 volt motor drawing 40 amps and operating 8400 hours/year. The Power Factor is .85. Electricity costs $0.06/kWhr. Also assume that the amp draw is measured before and after the alignment and it is found that there is a 1 amp difference.
kW =V* A*PF*1.732/1000
kW =480V* 1A*.85*1.732/1000
kW =.706 = power savings
Savings ($) = operating hours * kW savings * kW cost
Savings ($) = 8400 * .706 * $0.06/kWhr
Savings ($) = 8400 * .706 * $0.06/kWhr
Savings ($) = 355.82
If your plant has 80 similar motors, and if only half of them had the same amount of savings, it would total $355.82 * .5 = $14,232!

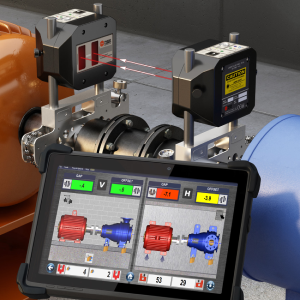

The coupling icons next to the data displays show the direction of the misalignment at the coupling and update as you move or shim the motor! You can also zoom in on the coupling to show them in the live display area of the screen.
