Build Your Own™ APP Selector

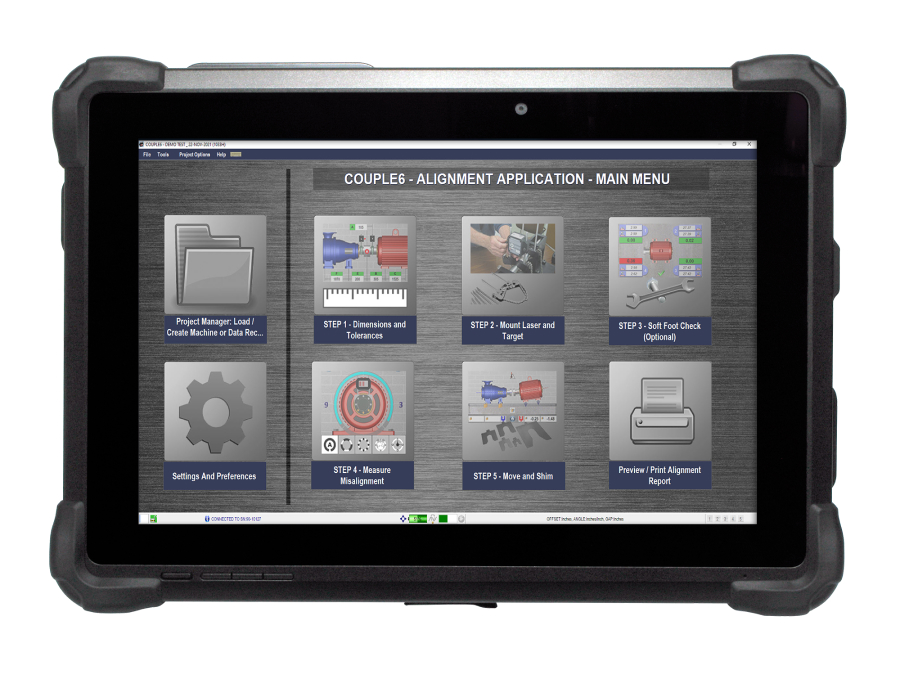

COUPLE6 automatically saves data to a backup with each step that is competed in the software. When you exit the program, COUPLE6 will ask if you want to save data to the file you created when the program was started.

Checking and correcting Soft Foot is critical. Our Soft Foot Check is an easy-to-follow soft-foot routine that finds potential soft-foot problems and recommends corrective action. We do the calculations for you!

Select User Tol. To customize the tolerances that will be applied during the alignment.

Thermal Growth values can be entered for both the Vertical and Horizontal axes of the machine. Values can be entered at the feet or at the coupling.

Thermal Growth video

Enter the temperature changes for one or both of the machines and COUPLE6 will convert this complex situation into a simple thermal growth offset at the coupling and apply it automatically to the alignment values.

Thermal Growth video

Select the Bolt bound alignment and the pump side dimensions are added to the dimension screen. You now have the flexibility to change the reference feet to minimize the amount of shim or movement required.

Bolt Bound video

Choose Vertical Machines™ alignment type and the vertical pump graphics will display. Select the number of bolts and enter the dimensions on the screen and after taking the data, Couple6 will automatically calculate the misalignment at each bolt hole location.

By far, the most popular data-taking mode, Auto Sweep™ makes taking shaft alignment data extremely easy. Simply start rotating the shafts and Couple6 automatically starts recording hundreds of data points at a rate of 16 readings per second, providing the most accurate alignment data in the industry!

Arc Mode™is a great data-taking mode to get more data and better results for those applications where parts of the driven unit are preventing you from taking a full rotation set of data (360 degrees)

Point Mode is yet another data-taking method that ensures all challenging applications have a solution in Couple6. It is typically used when there are high levels vibrations present that can affect repeatability. The data is averaged to dampen out fluctuations caused by vibration and the averaging can be adjusted for high-vibration environments.

Uncoupled Swipe is the best uncoupled data-taking mode on the market. Simply rotate the laser to any clock position and then slowly sweep the target past the laser.

After accepting a set of data Couple6 puts it in the Repeatability Table where you can see the V & H Offsets and V & H Gaps or Angles and the data of the measurement. You can save up to 20 sets of data in one table.

Live updating of alignment values and graphics as you make adjustments on a vertical machine.

Coule6 offers 7 different spacer shaft data formats to accommodate the many different tolerance formats in the industry.

A 3-element machine train is easily managed. The Shim/Move optimizer provides many options to minimize machinery moves. Colorful library of customizable machine types/graphics.

Align complex trains with up to 10 machines. The Shim/Move optimizer provides many options to minimize machinery moves, giving you maximum flexibility. Colorful library of customizable machine types/graphics.

Offers 2 data taking modes:
1. S-Timer records the movement of machinery with custom time intervals
2. Manual data for recording thermal growth cold/hot values or for doing general data recording.
Data presented in colorful scaled plots. Records up to 32,000 data points that can be exported as an Excel file.

Records straightness measurements using our A-987 Laser/Target Measuring Base. Straightness TIR results are calculated using the Best Fit data algorithm. Results data presented a summary as well as plotted on a graph. Records V offset and V angle for the X-660/770 and V&H Offset and V&H Angle for the X-880/990. All axes are plotted on the graph and shown in the results table. Records up to 32,000 data points that can be exported as an Excel file.

Records flatness measurements using our A-987 Laser/Target Measuring Base. Flatness TIR results are calculated using the Best Fit data algorithm. Results data presented a summary as well as plotted on a graph. Records V offset and V angle. All axes are plotted on the graph and shown in the results table. Records up to 32,000 data points that can be exported as an Excel file. Also supports the L-730/L-750 Auto Rotating Lasers and A-1519-2.4ZB Single-Axis Scan Targets.

For flatness and straightness applications that require .00012 in./ft. (0.01 mm/m) accuracy. Comes with coarse pitch and roll adjustment base and standard level vials (2 arc secs). Recommend L-730SP Upgrade for high-frequency, high-accuracy leveling applications.

Auto-rotating laser to measure flatness or straightness of surfaces. 150-foot operating range. Battery operated. Use the T-1285 or T-1290 Target with A-987 Measuring Base and Plane5 to measure the surface.

Single -Axis 2.4 GHz "Zigby" Wireless Scan Target 1" (25mm) range, .00002 in. (0.0005 mm) resolution and +/-.00015" (0.0035 mm) accuracy.

Magnetic base with swivel mount to hold X-Series targets (T-1285/T1290) and lasers (L-780/L-790) for geo measurements (straightness, & flatness). Works with the standard posts from the A-980 brackets. Can be used to measure flatness - swivel accuracy is .001 in/ft. (0.08 mm/m).

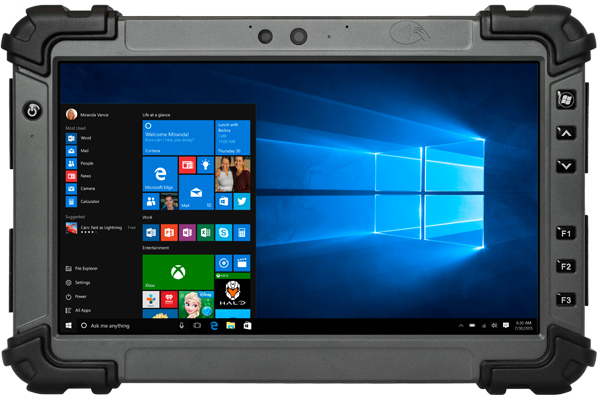

Extremely Rugged 10" Tablet, Win10, -20°C to 60°C, IP65, MIL-STD-810G and MIL-STD-461F, Sunlight readable capacitive touch screen, Intel® Core i5, Quad Core, @ 1.6 GHz (up to 3.4 GHz), 8GB RAM, 256GB HD

Spare battery (11.2V, 5.4 Amph, ~5 hr) for all T2 tablets. Provides hot swap capability while you align

Spare battery (11.2V, 8.0 Amph, ~11 hr) for all T2 tablets. Provides hot swap capability while you align

Connects to Rugged Tablet (via USB), providing both laptop and tablet experience. Full keyboard and touch pad. IP42-rated. No batteries or charging required.

Slim, compact and durable design. Includes 4 USB ports, 2 HDMI, LAN & DC-in jack. Compatible with 301XC & 301XI tablets.

Simultaneous charging of up to 6 batteries. Only for use with 301XI batteries.

Charges one battery at a time. Only for use with 301XI batteries

Power adapter, 19V, 3.42A, 65W with power cord. For 301XC & 301XI tablets.

Chain adapter for small diameter shafts. Includes a magnet to hold adapter it in place on the chain.

For A-980 brackets to offset the laser or target forward or back by 2". Can be used with A-982 Mag Brackets to mount on flange faces with contours and use it for narrow spaces on normal shafts. 1 pcs.
